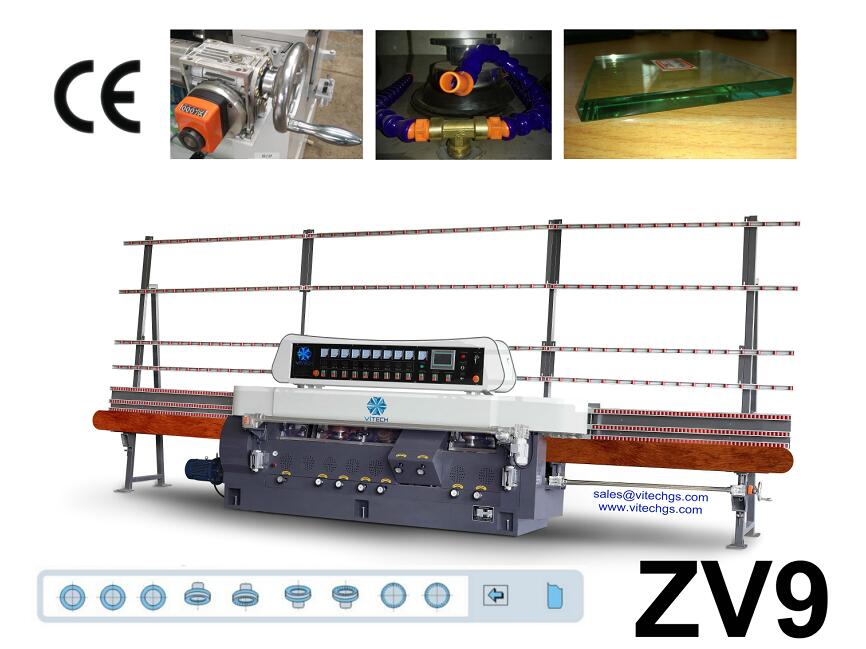

ZV9 9 Spindles Glass Edging Machine

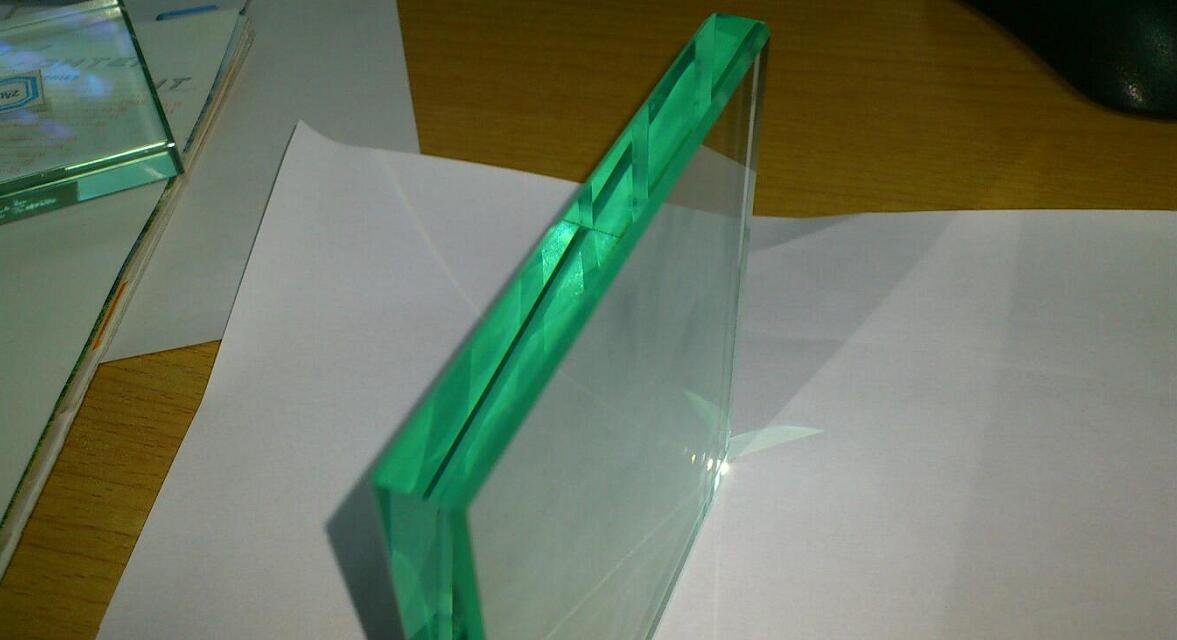

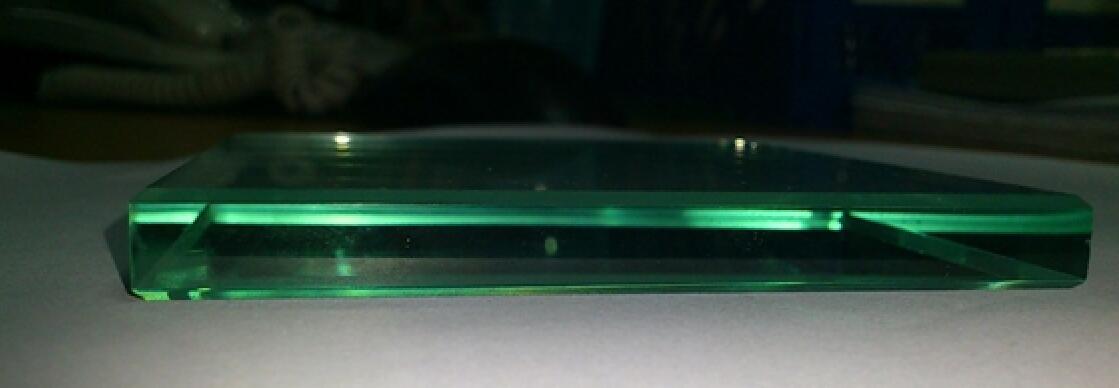

The Polishing Glass Sample will be as follow:

1.General description
1.1  ZV9 glass edger is suitable for processing straight-line edge & 45°arrises of glass sheet with various sizes and thicknesses.
1.2  The main base of the glass edger is made of cast iron.
1.3  The glass thickness can be showed on a digital display or touch screen.
1.4  With a special design of the in-feed section for controlling the desired amount of glass removal, the operator does not need to adjust each spindle individually.
1.5  The independent felt wheel and the cerium water recirculation system can make the flat edge more shining.
1.6  The input and output conveyor of the glass edger adopt timing belt which can improve the transmission precision.
1.7  It is easy to operate and the glass edger has good performance.

2. Technical Data
2.1 Processing glass thickness: 3-25mm
2.2 Angle of arris: 45°
2.3 Min.size of glass: 80mm×80mm /Max.size of glass:3000mm×3000mm

2.4 Processing speed: 0.5-6.0m/min
2.5 Installed power :19.5KW;
2.6 Dimension Size: 7400mm×1400mm × 2500mm(L*W*H)
2.7 Packing Size:4200mm*950mm*1600mm(L*W*H)

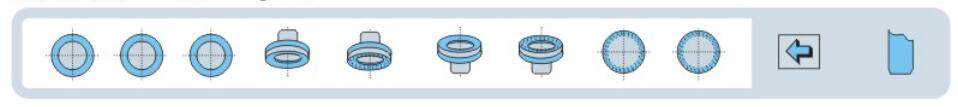

3. Wheels Disposal

No	Name	Function
No.1	Diamond wheel	Rough grinding of flat edge
No.2	Diamond wheel	Semi-fine grinding of flat edge
No.3	Resin wheel	Semi-fine grinding of front arris
No.4	Fine grinding wheel	Fine grinding of front arris
No.5	Resin wheel	Semi-fine grinding of back arris
No.6	Fine grinding wheel	Fine grinding of back arris
No.7	Resin wheel	Fine grinding of flat edge
No.8	Fine grinding wheel	Polishing of flat edge
No.9	Wool felt wheel	Polishing of flat edge

4.Machine Details:
4.1 The spindle with good and stable structure. And it has better waterproof. And the motor with longer
service life.

4.2 The large diameter cooling universal water pipe can cool down the glass and the grinding wheels
quickly,which can provide the best polishing quality of Glass.

4.3 Electrical components adapts Schneider ( made in Germany)

4.4 The processing speed controlled by Stepless Gear Motor:

Or you can choose the Frequency Inverter,the price will be US$1,500 more than Stepless gear motor.

4.5 A special design of the in-feed section for controlling the desired amount of glass removal without
adjusting each spindle individually:

4.6 Input and output conveyor adopt timing belt which can improve the transmission precision:

5.Option:
5.1 Manual Control:It adopt a hand wheel to adjust the glass thickness, which is suitable for the straight-line edging machine only.

5.2 Digital Display Control:There have digital meter onto the machine panel to adjust the glass thickness. You just need to increase or decrease the parameter you need by the relative switch, then machine can be adjust automatically.

5.3 PLC and Pneumatic Control:Adopt PLC and touch screen, you can input the parameter you need and machine will adjust automatically.
