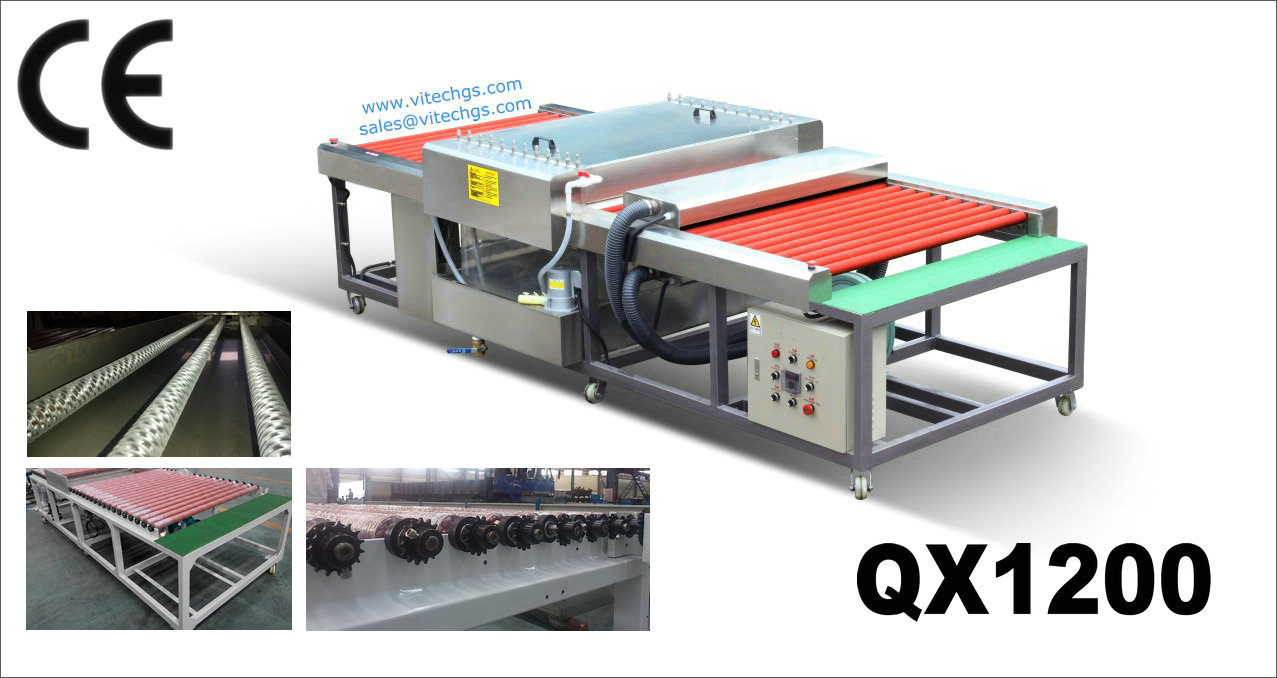

QX1200 Horizontal Glass Washer and Dryer



1.General description
1.1The processing speed of this glass washing and drying machine is adjusted by variable motor with horizontal structure

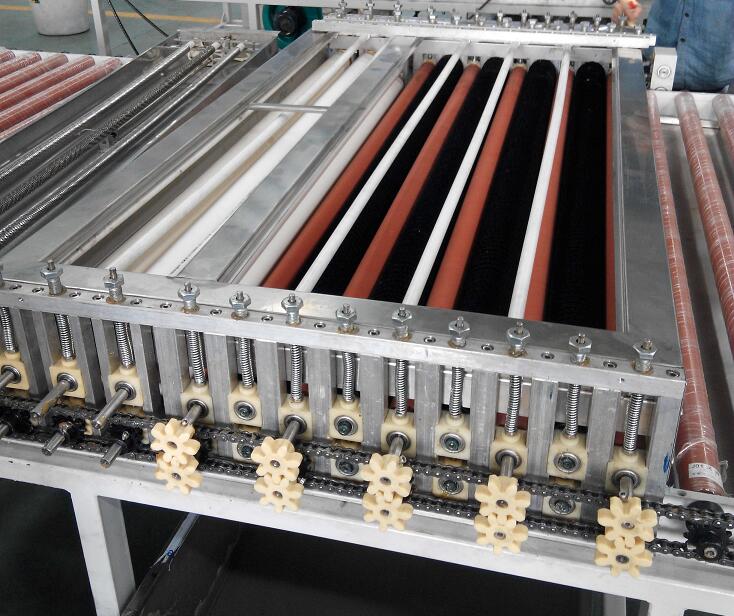

1.2There are four pairs of brushes and three pairs of sponge rollers which can make the performance of machine reliable

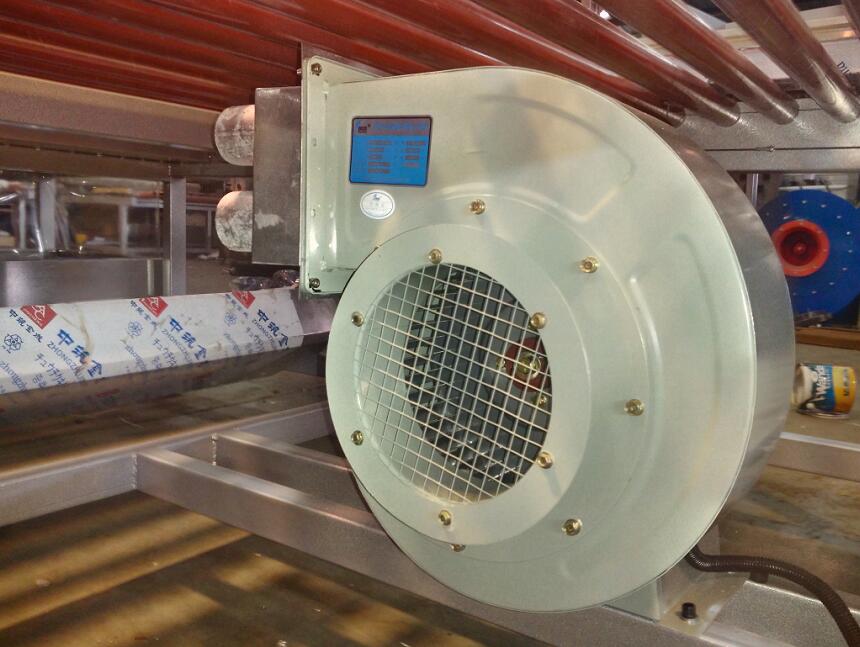

1.3The temperature of hot-air can be set in advance.
1.4Different designs of glass washer and drier are available to meet customers' requirements.

2.Technical parameters
Max.Size 1100*2000mm
Min.Size 150*150mm
Thickness 3-15mm
Processing Speed 0.7~3.5m/Min
Brushes 4pairs
Power 8Kw
Weight 800kg
Dimension 3400*1600*1020mm

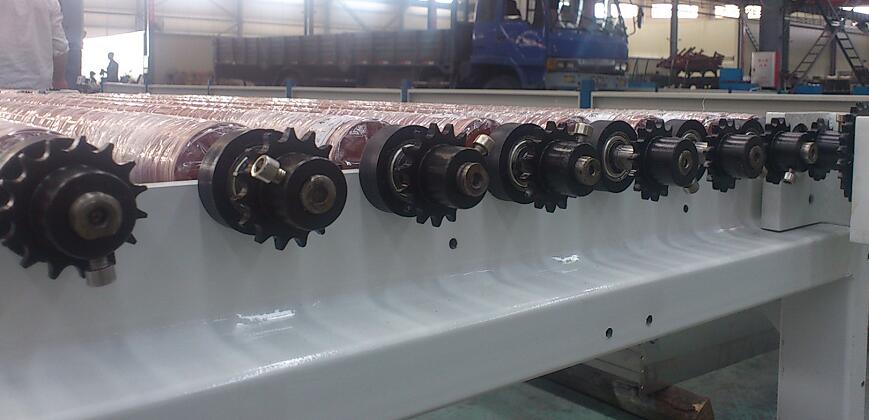

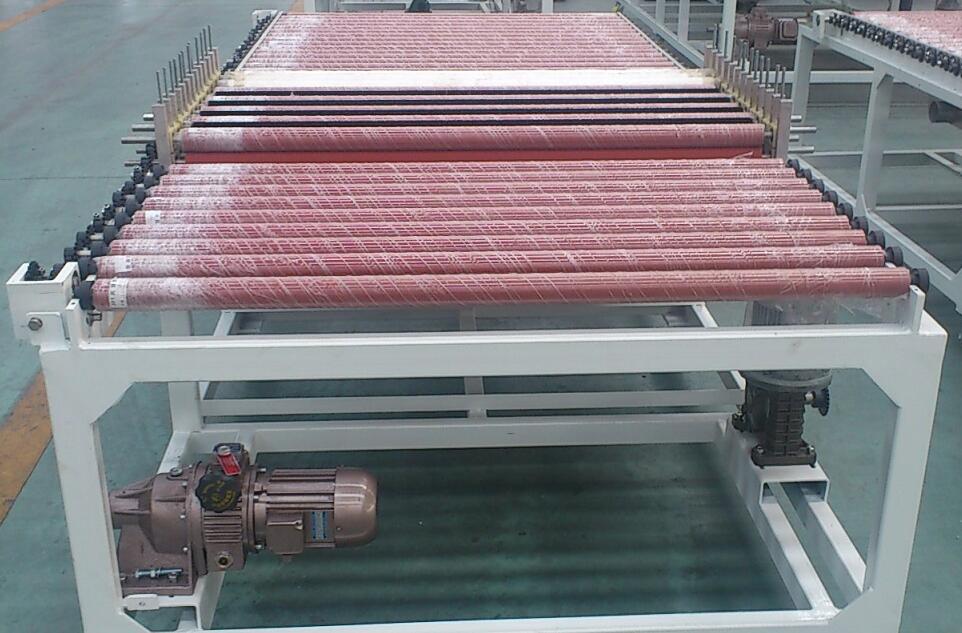

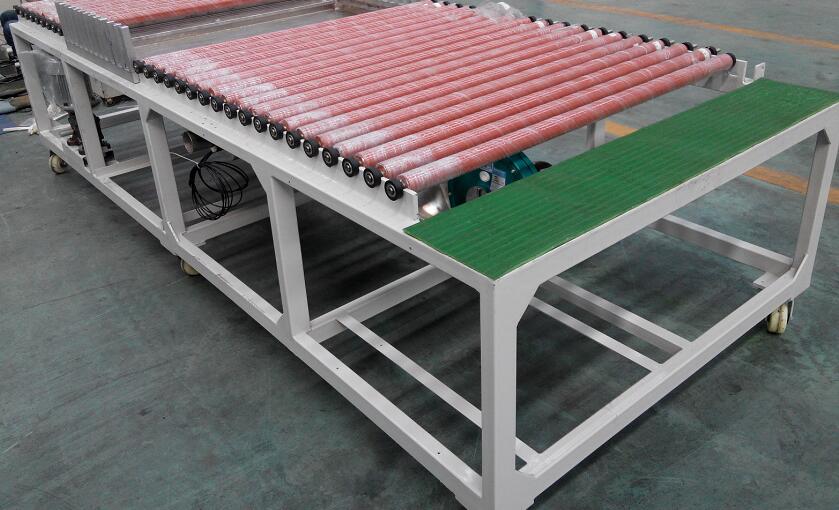

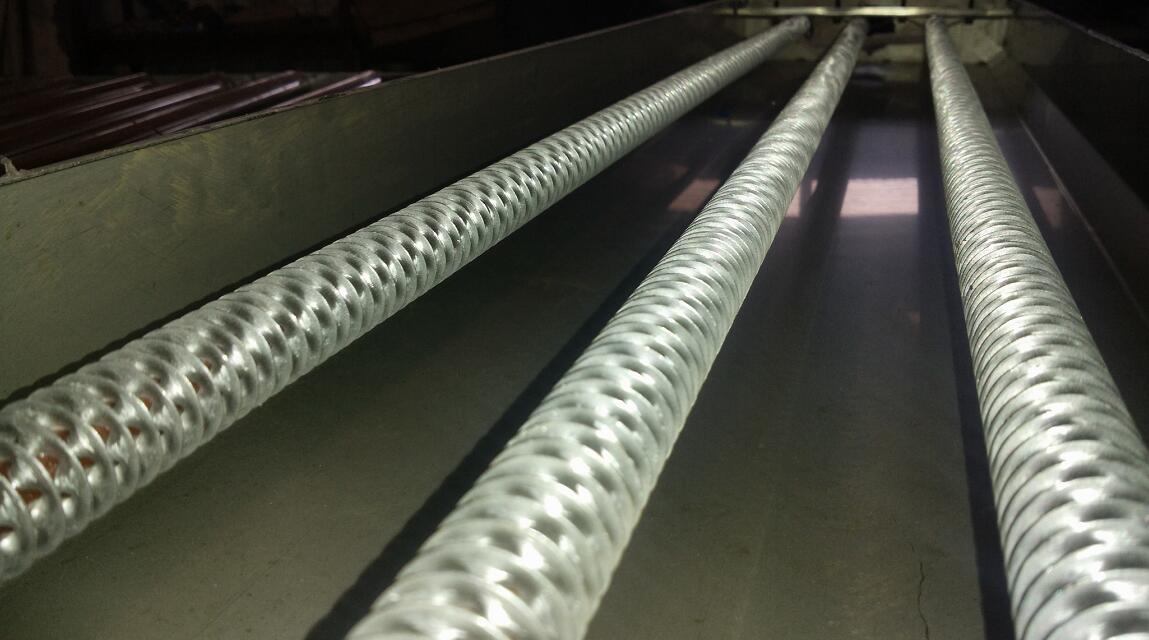

3.Machine Details:













| Time:2021-11-08
