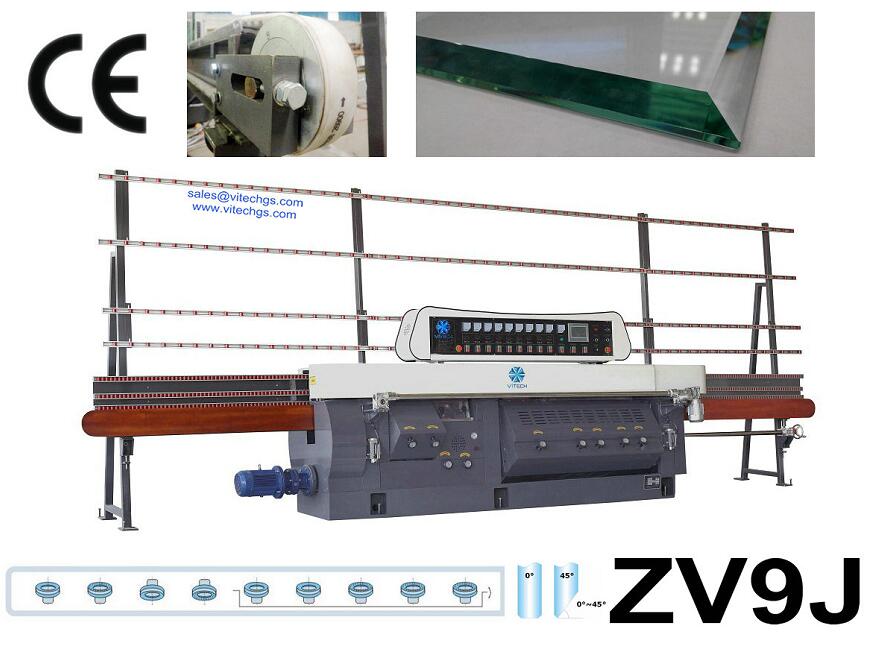

ZV9J 9 Spindles Glass Flat Edger&Variable Miter Machine

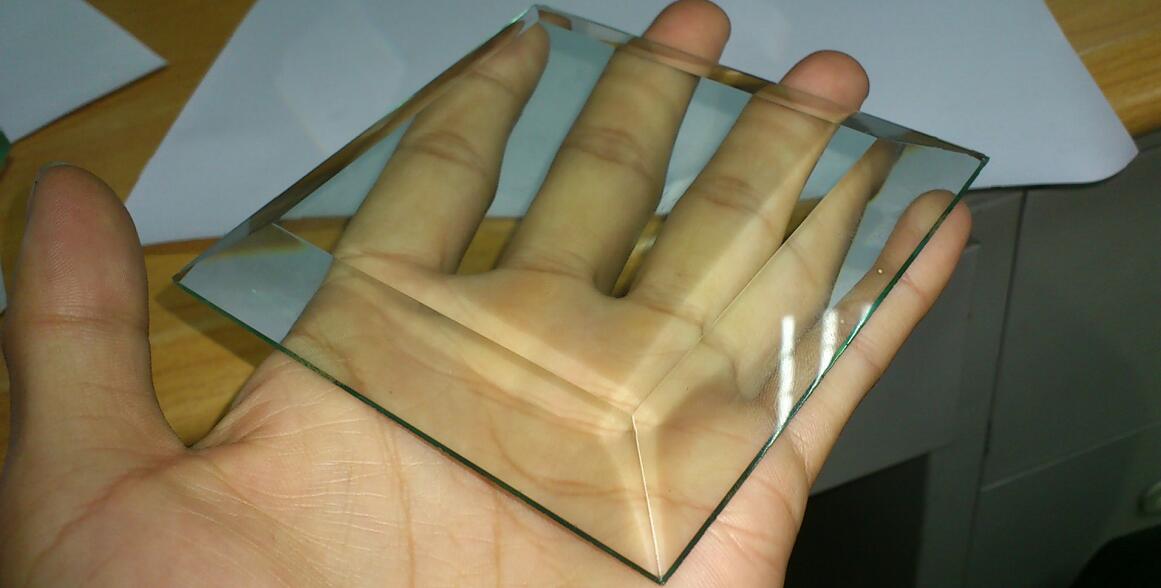

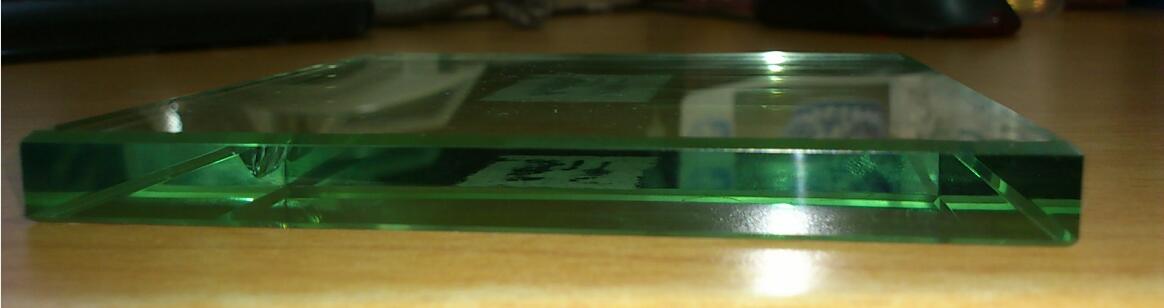

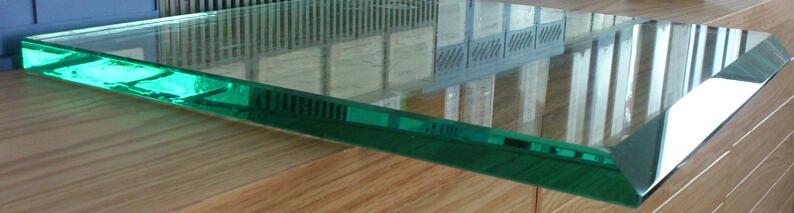

Glass Samples as follow:

1.Brief Introduction:
1.1. This glass edger and variable miter machine is able to grind and polish the miter angles of the glass,
With bottom edge polishing and rear seaming all at the same time.
1.2. The control system of this glass miter machine uses a Mitsubishi PLC control unit.
1.3. The input and output conveyor adopt timing belt which can improve the   transmission precision.
1.4. The processed glass surface is very bright and smooth, approaching the original glass surface.
1.5. The mitering angle of the glass machine ranges from 0 to 45 degree.

2. Technical Parameters
2.1 Processing glass thickness: 3~~25mm
2.2 Miter angle:  0°~~45°
2.3 Min size processing glass:  80mm×80mm
2.4 Processing speed:  0.75~~3.75m/min
2.5 Installation power: 20.3KW
2.6 Size: 7800 x 1400 x 2500mm

3. Wheel disposal (from input to output)

No.	Wheel	Function
No.1	Diamond wheel	Rough grinding for flat edge
No.2	Diamond wheel	Rough grinding for flat edge
No.3	Resin wheel	Semi-fine grinding for flat edge
No.4	Fine grinding wheel	Fine grinding for flat edge
No.5	Polishing wheel	Polishing for flat edge
No.6	Resin wheel	Rough grinding for front arris
No.7	Fine grinding wheel	Fine grinding for front arris
No.8	Resin wheel	Rough grinding for back arris
No.9	Fine grinding wheel	Fine grinding for back aris

4.Machine Details:

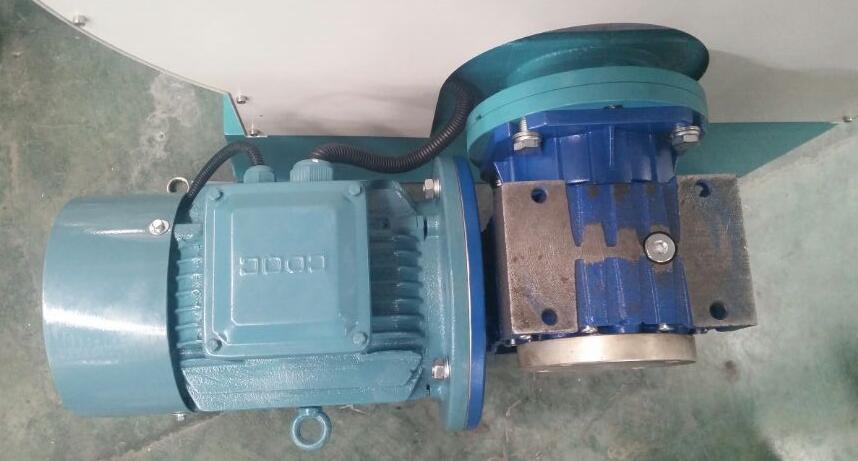

-The spindle with good and stable structure. And it has better waterproof. The motor with longer service life.

-The mitering angle of the glass machine ranges from 0 to 45 degree.

-The large diameter cooling universal water pipe can cool down the glass and the grinding wheels
quickly,which can provide the best polishing quality of Glass.

-Electrical components adapts Schneider ( made in Germany)

-The processing speed controlled by Stepless Gear Motor:

Or you can choose the Frequency Inverter:

-A special design of the in-feed section for controlling the desired amount of glass removal without
adjusting each spindle individually:

- Input and output conveyor adopt timing belt which can improve the transmission precision:

5.Option:
5.1 Manual Control:It adopt a hand wheel to adjust the glass thickness, which is suitable for the straight-line edging machine only.

5.2 Digital Display Control:There have digital meter onto the machine panel to adjust the glass thickness. You just need to increase or decrease the parameter you need by the relative switch, then machine can be adjust automatically.

5.3 PLC and Pneumatic Control:Adopt PLC and touch screen, you can input the parameter you need and machine will adjust automatically.
